KiwiPi 5 Pro
RK3588 Singe-Board Computer
· Rockchip RK3588 Quad-core ARM 64-bit CPU
· 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz
· ARM Mali-G610 MC4
· Triple-core NPU, 6 TOPS Performance
· Enable Various AI Applications
· LPDDR4X 8GB (option: 4/16/32GB)
· eMMC5.1 128GB (option: 64/256/512GB)
· Development Materials
Qwen
Gemma
Phi
MiniCPM

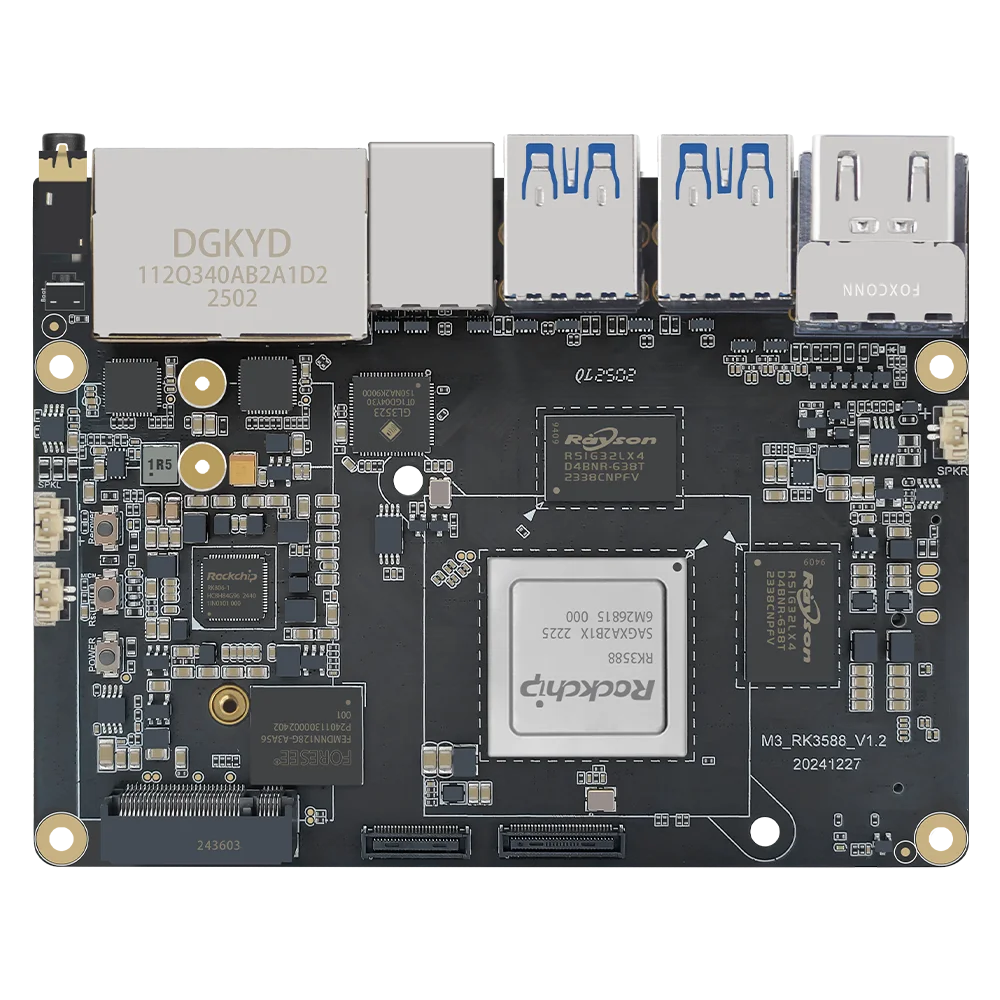

Kiwi Pi 5 Pro
Rockchip RK3588
The KiwiPi 5 Pro RK3588 single-board computer is equipped with an 8-core 64-bit processor, including four Cortex-A76 cores running at 2.2GHz, four Cortex-A55 cores at 1.8GHz, and a dedicated NEON coprocessor.
AI Perfomance
Includes a triple-core NPU that offers 6 TOPS of performance and accelerates multiple data types such as int4, int8, int16, FP16, BF16, and TF32.
8K Ultra HD
Supports stunning 8K Ultra HD resolution for an unparalleled viewing experience.
6 GB RAM & 256 GB eMMC
Include 6 GB of RAM and 256 GB eMMC storage, both equipped with high-speed performance for quick data access and smooth multitasking.
Wi-fi 6, Bluetooth & 5G
Supports the latest connectivity technologies, including Wi-Fi 6 for faster wireless speeds, Bluetooth for seamless device pairing, and 5G for ultra-fast mobile data.
Technical Support
Provide technical support, development resources, and datasheets.
Application Scenarios
Widely applicable to edge computing, private deployment of large models, smart commercial displays, cloud terminal products, industrial control hosts, automotive electronics, and other industries.
Edge Computing
Private Deployment of Large Models
Smart Commercial Display
Industrial Control Host
Smart Gateway
Automotive Electronics
Interfaces
Specifications
| KiwiPi 5 Pro | ||
|---|---|---|
| Basic Specifications | CPU | Rockchip RK3588 Quad-core ARM 64-bit CPU 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz 8nm process |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration | |
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications | |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time | |
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit | |
| eMMC5.1 | 28GB (option: 64/256/512GB) Support PCIe 3.0X4 M.2 2280 SSD hard drive expansion Support TF card expansion | |
| USB | 1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host | |
| HDMI | 1*HDMI 2.1 (8K@60fps or 4K@120fps)，1*HDMI 2.0 input/output | |
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.4 BLE 2.4Ghz and 5Ghz band channels, 2T2R | |
| Mobile Network | Support M.2 interface module Mobile EC200ACNLB-M.2 4G module Mobile RM500UCNVAA+ 5G module NANO SIM card interface | |
| Ethernet | 2×2.5G RJ45 Ethernet | |
| Audio | 3.5mm four segment headphone jack Support onboard microphone input interface Left and right dual speaker interface | |
| RTC | Supports rechargeable button batteries | |
| Button | Loader button Flashing button Reset button | |
| Expansion IO | 60Pin extension interface: 2 * MIPI-CSI 4Lane input and its matching IO 50Pin expansion interface: 1 * MIPI-DSI 4Lane/DP 2Lane/USB2.0 and its supporting IO 39Pin extension interface: 1 * MIPI-DSI 4Lane and its supporting IO | |
| OS | Linux 5.10 (option:Linux6.10) Android15/Ubuntu22.04/Debian11 | |
| Power Supply | Type-C PD input/output, default boost 12V/2A Support mainstream fast charging and boosting protocols | |
Customization
The Kiwi Pi team, bringing over 18 years of expertise in product design, research and development, and manufacturing, offers services including hardware, software, complete machine customization, and ODM/OEM.
